E-9939T／TOOLING BLOCKS WITH MAGNETIC CHUCK／135674

Spec

Order No.	№	Magnetic pole size	Number of magnetic poles	Adsorption force(per pole) （N）	Adsorption force(tota) (kN)	Controller	Rated current A	Weight (㎏)	Drawing	Product BOX	CAD	Production	Stock Status
135674	TBM5002-406HDS1	φ70	24	6150	147	NMC-100	10.8	330	View	Add	DATA	×	Contact

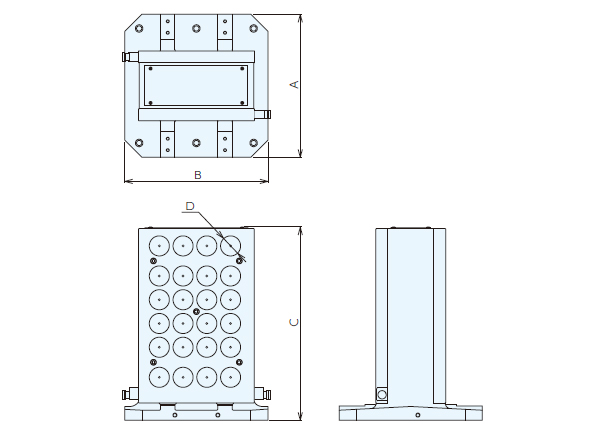

A	B	C	D
500	500	675	φ70
