Contribute the improving of production efficieny by offering our standardized items.
| Order No. |
№ | Magnetic pole size |
Number of magnetic poles |
Adsorption force (per pole) （N） |
Adsorption force (tota) (kN) |
Controller | Rated current A |
Weight (㎏) |
Drawing | Product BOX |
CAD | Production | Stock Status |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 135693 | MTBP630HD70S1 | φ70 | 30 | 6150 | 184 | NMC-100 | 15.2 | 144 | View | Add | DATA | × | Contact |

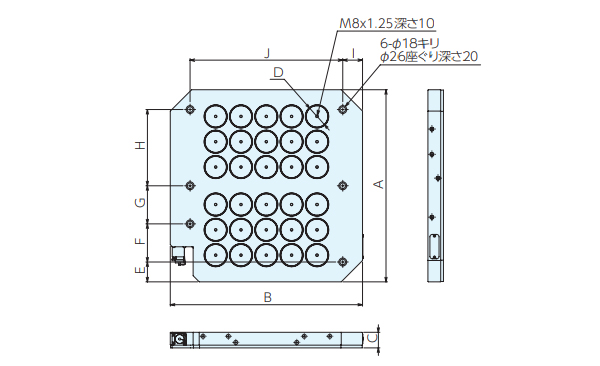

| A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|
| 630 | 630 | 51 | φ70 | 65 | 125 | 125 | 250 | 65 | 500 |
