E-9659X／ATTACHMENT PLATE FOR 2-FACE ANGLE PLATES (WITH MAGNETIC CHUCKS)／122218

Spec

Order No.	No.	Locating Bush	Clamp Bush	Weight (kg)	Drawing	Product BOX	CAD	Production	Stock Status
122218	MTBP630HD70S-QPL	QLT40RB	QLT40CB	190	View	Add	DATA	×	Contact

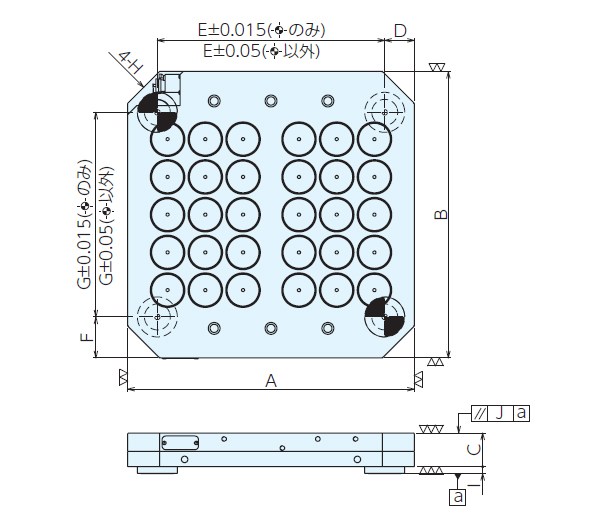

A	B	C	D	E	F	G	H	I	J
630	630	74	65	500	90	450	C70	15	0.02
