Contribute the improving of production efficieny by offering our standardized items.
| Order No. |
№ | MovaBle Body Shape |
Maximum Torque N.m |
Maximum Clamping Force kN |
Compatible Mounting Bolt |
Weight (kg) |
Drawing | Product BOX |
CAD | Production | Stock Status |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 125686 | DKC08-VJ | V Type | 20 | 10 | M8x16 | 0.8 | View | Add | DATA | Stock Item | Stock〇 |

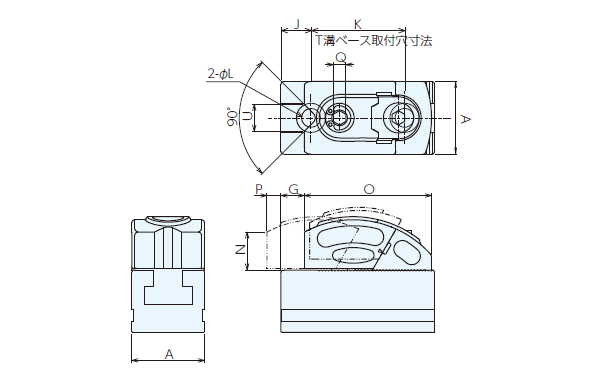

| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T (Coarse Thread) | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 35 | 55.7 | 30 | 4.5 | 17 | 28.3 | 11.2 | 2.6 | 74 | 14.5 | 45 | 9（Ｍ8 Type） | 25.7 | 17.3 | 61.3 | 6.8 | 6 | - | - | - | 13 |
