Q-LOCK ELEMENTS ROUGH GUIDE PINS

E-9659B

Material
QL-RGP-M:MCNylon
QL-RGP-S:Mediumcarbonsteel(S45C)
Feature
●ForquickerexchangesofjigplateswithQ-lockelements.
●Beinglocatedinsidechildjigfornointerferencetosurroundings.

Spec/Price

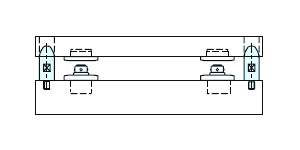

Usage
How to use Product BOX

Specifi cations

Type Order No. № Compatible
Q-lock elements		 Weight
(g)		 Drawing Product
BOX		 CAD Production Stock
Status
MC nylon 984564 QL-RGP19M QLT19,QLA19 15 View Add DATA Stock Item Stock〇
MC nylon 984565 QL-RGP26M QLT26,QLA26,QLH26 18 View Add DATA Stock Item Stock〇
MC nylon 984566 QL-RGP32M QLT32,QLA32,QLH32 20 View Add DATA Stock Item Stock〇
MC nylon 984567 QL-RGP40M QLT40,QLH40 60 View Add DATA Stock Item Stock〇
MC nylon 984568 QL-RGP03M QL(S･H)M03 18 View Add DATA Stock Item Stock〇
MC nylon 984569 QL-RGP07M QL(S･H)M07 47 View Add DATA Stock Item Stock△
MC nylon 984570 QL-RGP10M QL(S･H)M10 53 View Add DATA Stock Item Stock〇
MC nylon 984571 QL-RGP16M QL(S･H)M16 85 View Add DATA Stock Item Stock〇
MC nylon 984572 QL-RGP25M QLHM25 90 View Add DATA Stock Item Stock〇
MC nylon 996537 QL-RGPS26M QLTS26 20 View Add DATA Stock Item Stock〇
MC nylon 996538 QL-RGPS40M QLTS40,QLH48 78 View Add DATA Stock Item Stock〇
MC nylon 102272 QL-RGPSS26M QLTSS26 8 View Add DATA Stock Item Stock〇
MC nylon 102273 QL-RGPSS40M QLTSS40 12 View Add DATA Stock Item Stock〇
S45C 984573 QL-RGP19S QLT19,QLA19 105 View Add DATA Stock Item Stock〇
S45C 984574 QL-RGP26S QLT26,QLA26,QLH26 130 View Add DATA Stock Item Stock〇
S45C 984575 QL-RGP32S QLT32,QLA32,QLH32 145 View Add DATA Stock Item Stock〇
S45C 984576 QL-RGP40S QLT40,QLH40 400 View Add DATA Stock Item Stock〇
S45C 984577 QL-RGP03S QL(S･H)M03 125 View Add DATA Stock Item Stock〇
S45C 984578 QL-RGP07S QL(S･H)M07 325 View Add DATA Stock Item Stock〇
S45C 984579 QL-RGP10S QL(S･H)M10 365 View Add DATA Stock Item Stock〇
S45C 984580 QL-RGP16S QL(S･H)M16 590 View Add DATA Stock Item Stock〇
S45C 984581 QL-RGP25S QLHM25 620 View Add DATA Stock Item Stock〇
S45C 996539 QL-RGPS26S QLTS26 134 View Add DATA Stock Item Stock〇
S45C 996540 QL-RGPS40S QLTS40,QLH48 510 View Add DATA Stock Item Stock〇
S45C 135813 QL-RGPSS26S QLTSS26 40 View Add DATA Stock Item Stock〇
S45C 135814 QL-RGPSS40S QLTSS40 60 View Add DATA Stock Item Stock〇

Usage
